| Product Name: | SSMP Hermetically Sealed Male Connector | Gender: | Male |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Rated Voltage: | 170VRMS* | Interface: | Full Detent |
| Highlight: | Hermetic Seal SMPM RF Connector,50Ω SMPM RF Connector,50Ω Coaxial SSMP Connector |
||

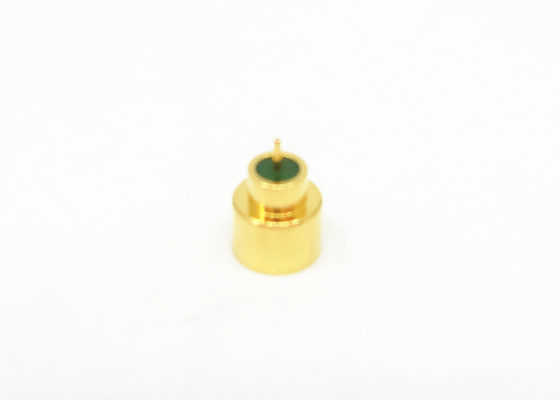

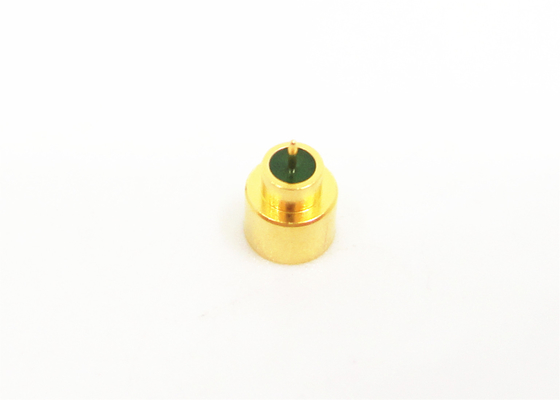

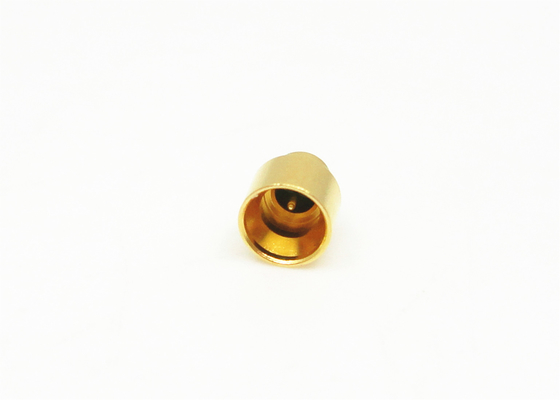

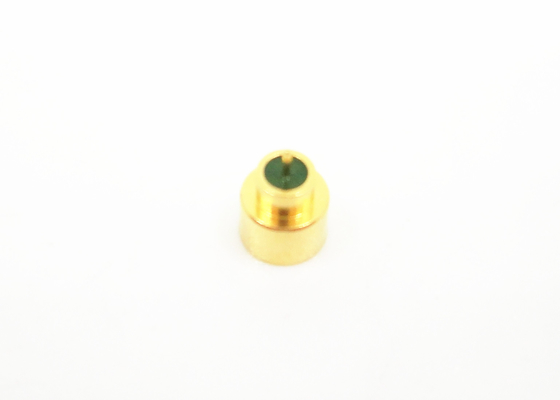

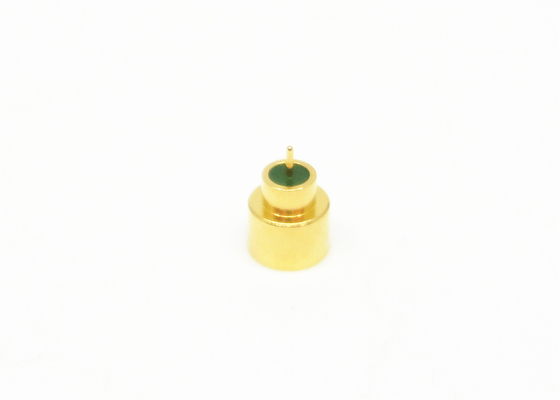

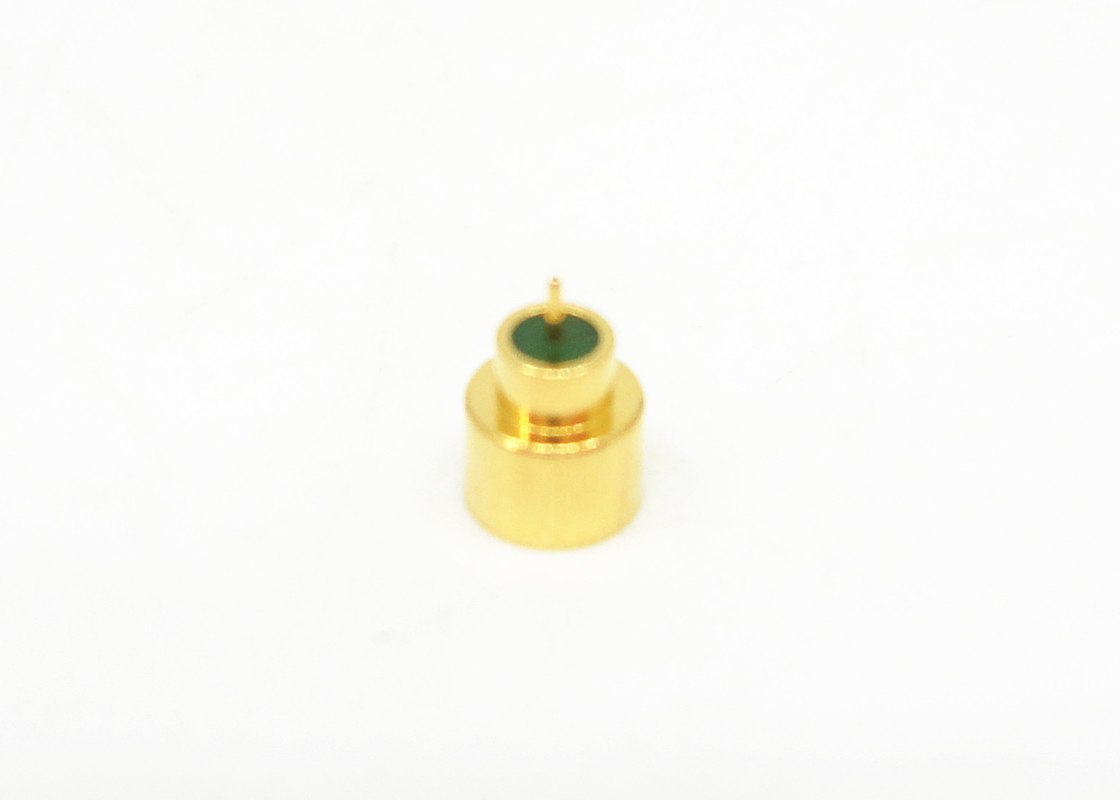

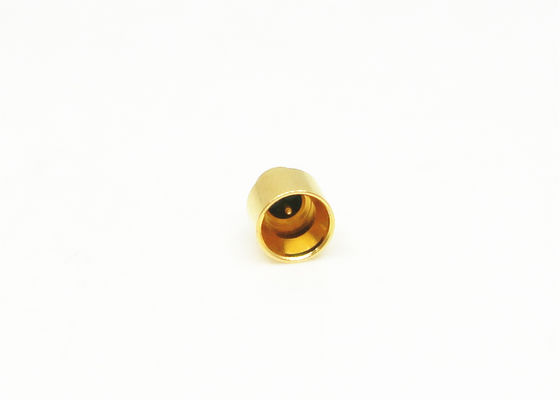

Hermetic Seal Male SMPM RF Connector Coaxial SSMP Connector
SMPM is a miniature push in RF coaxial connector, which has the characteristics of small volume (compared with mini SMP), light weight and wide working bandwidth. It is applicable to the coupling use of board to board connectors in the case of modular dense installation. The plug has two interface forms: full pawl and non threaded hole.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | ≤5mΩ | |||
| Center conductor | ≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Kovar, Gold plated | |||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Kovar Gold plated |
||||
| Insulators | Glass sintering | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Features
• excellent shock and vibration capability
• 35% smaller than SMP connectors
• axial and radial misalignment is allowed (blind configuration application)
• performance up to 65 GHz
| Model No. | L(mm) | Interface Type | Note |
| SMP(M)-JHD | 1.3 | Full detent, hermatically sealed | Inteface deepth 1.4mm |
| SMP(M)-JHD-S | smooth bore | Inteface deepth 1.4mm | |
| SMP(M)-JHD3 | Full detent, hermatically sealed | Inteface deepth 1.4mm | |
| SMP(M)-JHD50 | Full detent, hermatically sealed | Inteface deepth 1.4mm | |
| SMP(M)-JHD41-S | smooth bore | Inteface deepth 1.4mm | |
| SMP(M)-JHD57-S | smooth bore | Inteface deepth 1.4mm |
Application:
*Network
*Satellite communication
*PC / LAN
*Base station
*Outdoor facilities
*Automobile
*Jumper insertion
*Basic facilities
*Radar, microwave
*Telecommunications
*Mobile communication
*Instrumentation
*Radio and television antenna system
