Chip Resistor RF Matched Load Termination with SMP Male Connector DC - 40GHz

Large Image : Chip Resistor RF Matched Load Termination with SMP Male Connector DC - 40GHz Get Best Price

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	ELT
Certification:	CE ROHS
Model Number:	SMP-JR10-0.5W

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

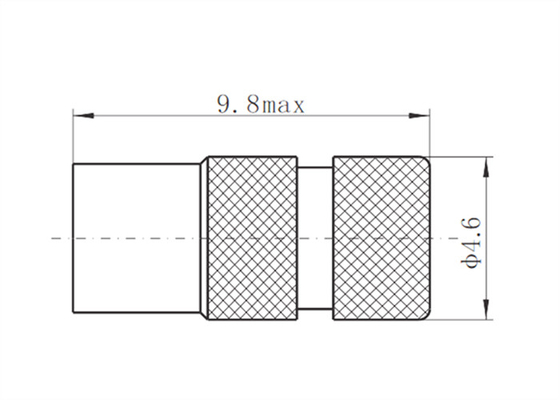

Impedence:	50Ohm	Length:	9.8mm Max
Diameter:	φ4.6	Frequency Range:	DC-40GHz
Housing:	Brass	Note:	Chip Resistor
Highlight:	SMP Male Connector RF Load Termination , Chip Resistor RF Coaxial Connector , 40GHz Termination Connector

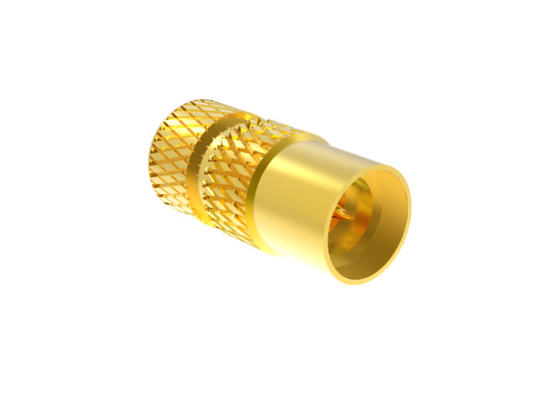

0.5 Watt RF Matched Load Termination with SMP Male Connector DC - 40GHz with Chip Resistor

Xi'an Elite Electronc ‘s SMP Male RF Load – Termination is a Push On designed that offers 50Ohm impedance and is rated for a maximum frequency of 40GHz.

The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.

Electrical data	Requirments
Frequency range	DC-40GHz
Characteristic impedance	50Ω
VSWR	≤1.3
Power	0.5W

Mechanical data	Requirments
Durability (matings)	≥500

Environmental data	Requirments
Temperature range	-55℃ to 125℃

Material data	Requirments
Connector parts	Material	Plating
Body	Brass	Gold
Coupling nut	Brass	Gold
Pin contacts	Beryllium copper	Gold
Insulators	PTFE

Chip Resistor RF Matched Load Termination with SMP Male Connector DC - 40GHz 0

Details of 0.5 Watt RF Matched Load Termination with SMP Male Connector DC - 40GHz with Chip Resistor

Advantage :

* High Reliable

* Reliable Mechanical Performance

* Wide Frequency Range from DC to 40GHz

Applications :

* Broadband
* Instrumentation
* Routers
* Telecommunications
* High-Speed Applications (10 to 40Gbits)
* Cable Assembly
* PCB
* Surface Mount Connections
* Features and Benefits

Features & Benefits:

* Blindmate/push on design
* RF performance DC to 40GHz
* Designed to accommodate both radial and axial misalignment
* Push-on and snap-on mating styles for quick installation
* Next generation phase arrays
* High speed semiconductor test
* Customer specific development

Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:

*The frequency range you need.

*Power requirement.

*Connector type

*Your special requirements if you have (VSWR, temperature, size, etc.)
