| Product Name: | RF Cable Assembly | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Interface: | Snap-On, Threaded, Push | Model: | SMA |
| Highlight: | 50 Ohm RF Cable Assembly,L340 RF Cable Assembly,SMA Male RF Cable Harness Assembly |
||

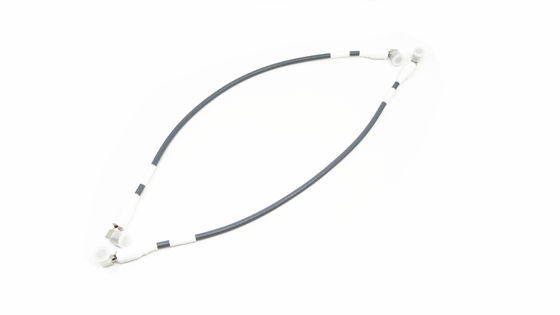

SMA Male Right Angle to SMA Male Right Angle RF Cable Assembly L=340
Also known as a coaxial cable, an RF cable is a standard cable used to transmit visual and audio signals. An RF cable is typically identified by its connectors which have a single pin in the center of the connector. This pin inserts into the dock while the surrounding connector encompasses the outside of the dock. This design allows RF cables to connect securely while blocking out potential interference. These powerful cables are used in any industry that utilizes visual or audio equipment so that they can be found in an array of outlets.
Specifiacation:
| Electrical Characteristics | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | 0~3GHz | |
| VSWR | ≤1.22 | |
| Dielectric Withstanding Voltage | ≥1000VRMS,50Hz, at sea level | |
| Dielectric Resistance | ≥1000MΩ | |
| Contact Resistance | Center conductor | ≤3mΩ |
| Outer conductor | ≤2mΩ | |
| Material & Mechanical Characteristics | ||
| Body | Brass Au Plated | |
| Insulator | PTFE | |
| Center conductor | Brass Au Plated | |
| Durability | Mating cycles ≥500 | |
| Temperature Range | -55-+155℃ | |
| Suitable for cable | RG316 | |
| Interface | According to IEC60169-52 | |
Application:
Xi'an Elite Electronic has a wide variety of pre-configured coaxial cable assemblies designed to provide additional benefits in certain applications. The assemblies are engineered using connectors that meet special qualifications such as being optimized for higher frequencies or constructed to withstand external elements.
Industral:
-Aerospace
-Defense
-Rail
-Medical
-Space
-Telecom
-Industrial
-Test & Measurement
Detailed Drawing
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
