Product Details:
Payment & Shipping Terms:
|
| Body Material: | Brass | Impedance: | 50 Ohm |
|---|---|---|---|
| Color: | Gold Plated | Body Style: | Right Angle |
| Type: | SMP Male RF Adapter | Mount Method: | Blind Mate |
| Engagement Force: | 45N Max | Disengagement Force: | 9N Min |
| Highlight: | Hermetically Sealed SMP RF Connector,Smooth Bore SMP RF Connector |
||
SMP Hermetically Sealed Male Right Angle Smooth Bore RF Connector
SMP connector is a push-in and nip-in combination connector, its interface is the same proportion as the MMCX connector ultra-small interface, the smallest size of the installation density can reach the connector center distance of 4.3mm, so it is very suitable for high-density blind mating. It is especially suitable for high-density blind mating between printed boards, chassis and cabinets, and is generally used in full escapement/half escapement + linkage + optical hole.
Xi'an Elite Electronic right angle SMP connector 18, 3 and 8 GHz maximum frequency are provided in this category. SMP female or male (jack or plug) connector RA (sometimes called a SMP coaxial cable adapter when transitioning from coax to connector interface) are available. Our SMP right angle connector datasheet PDF specifications with precise CAD drawing, dimensions and other spec details can be get by contacting us.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.4 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| VSWR other | ≤1.3 | |||
| Center Conductor | Male |
Tin Phosphor Bronze/Kovar Alloy
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
brass/beryllium bronze/Kovar Alloy/copper alloy, stainless steel passivated
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available

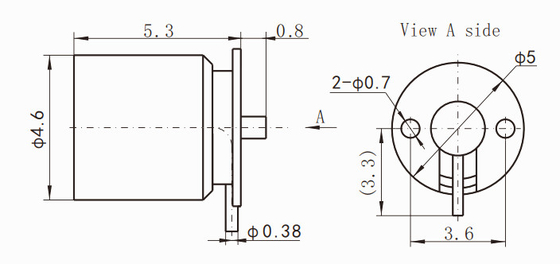

Outline Drawing of
SMP Hermetically Sealed Male Right Angle Smooth Bore RF Connector
Related SMP Hermetically Sealed Connectors
1.
| SMP(M)-JHD1-JH | Male Limited Detent | Hermetic, Circumferential bonding Interface depth 2.79 |
2.
| SMP(M)-JHD160-JH | Male Limited Detent | Hermetic, interface depth 18 bondable |
3.
| SMP(M)-JHD199-JH | Male Limited Detent | Hermetic, Interface depth 1.7 Bondable |
4.
| SMP(M)-JHD487-WP | Male Limited Detent | Hermetic, Interface depth 2.79 |
5.
| SMP(M)-JHD618-S-WP | Male Smooth Bore | Hermetic, Interface depth 2.79 |
Install Introduction:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
