| Product Name: | SSMP Male Connector | Gender: | Male |
|---|---|---|---|
| Material: | Kovar | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Rated Voltage: | 170VRMS* | Insulator: | PTFE/PEI |
| Highlight: | SMPM Male RF Plug Connector,Low Loss SMPM RF Connector,Long Legs Microstrip RF Connector |
||

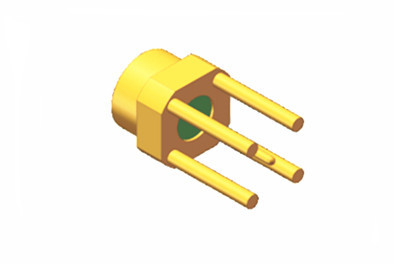

Low-loss SMPM Male PCB Mount with Long Legs Microstrip RF Plug Connector
SMPM is a small, push-in RF coaxial connector that provides a high level of performance in a compact form factor. It is designed for use in applications where space is limited and high-density installations are required. The connector features a lightweight construction and a wide operating bandwidth, making it suitable for a variety of RF applications. Additionally, SMPM offers two interface options: full detent and unthreaded hole, providing flexibility for different installation scenarios.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥5000MΩ | ||||
| Center Resistance | Outer conductor | Normally≤3.5mΩ, Hermetic≤5mΩ | |||
| Center conductor | Normally≤8mΩ , Hermetic≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male |
Tin Phosphor Bronze/Kovar , gold Plated |
|||
| Female | Beryllium bronze, gold plated | ||||
| Elastic Contact | Beryllium bronze/Gold plated/Passivated | ||||
| Shell and other Metal Parts |
Beryllium Bronze/Kovar/Stainless Steel |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325x10-3.Pa.cm3/S | ||||
Features
SMPM connector is a small, quick-connect coaxial connectorSMPM connector is a small, quick-connect coaxial connector that features excellent electrical characteristics and minimal mechanical dimensions. while also providing excellent propagation speed and low latency. In addition, SMPM connectors have outstanding performance and secure bonding/separation forces, making them widely used in high-speed digital testing and RF testing, industrial, mobile communications, aerospace, and other fields.

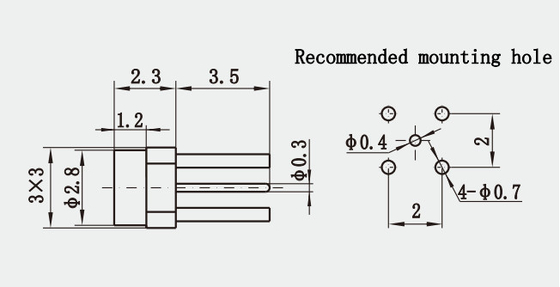

Detail Picture of Low-loss SMPM Male PCB Mount with Long Legs Microstrip RF Plug Connector(mm):
Application:
*Network
*Satellite communication
*PC/LAN
*Base station
*Outdoor facilities
*Automobile
*Jumper insertion
*Basic facilities
*Radar, microwave
*Telecommunications
*Mobile communication
*Instrumentation
*Radio and television antenna system
*RF test and measurement boards
*High-speed digital component test
NOTE:
We have over 10,000 types of SMPM RF Coaxial Connector, if the connector you are using is not found, please contact us with your details.
