Product Details:
Payment & Shipping Terms:
|

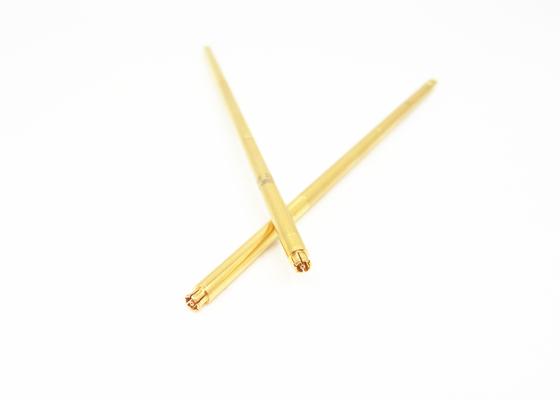

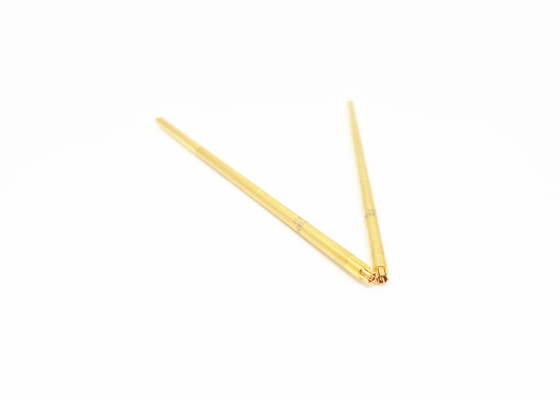

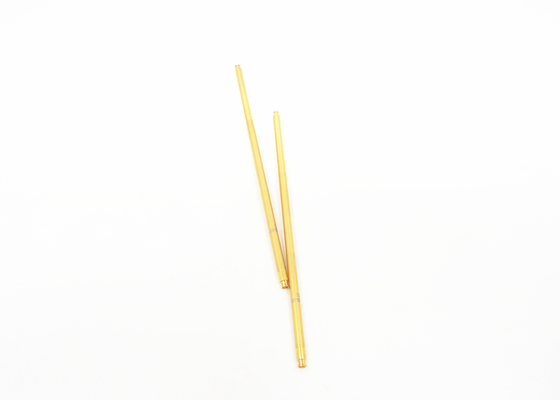

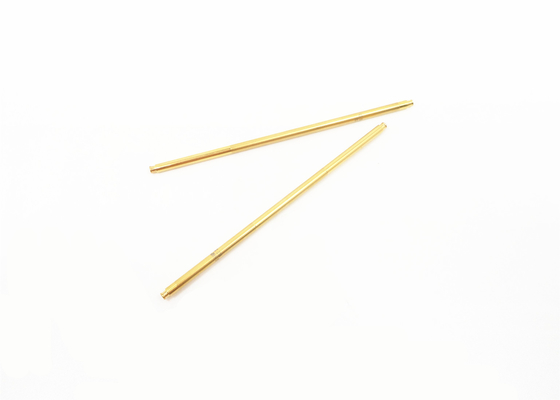

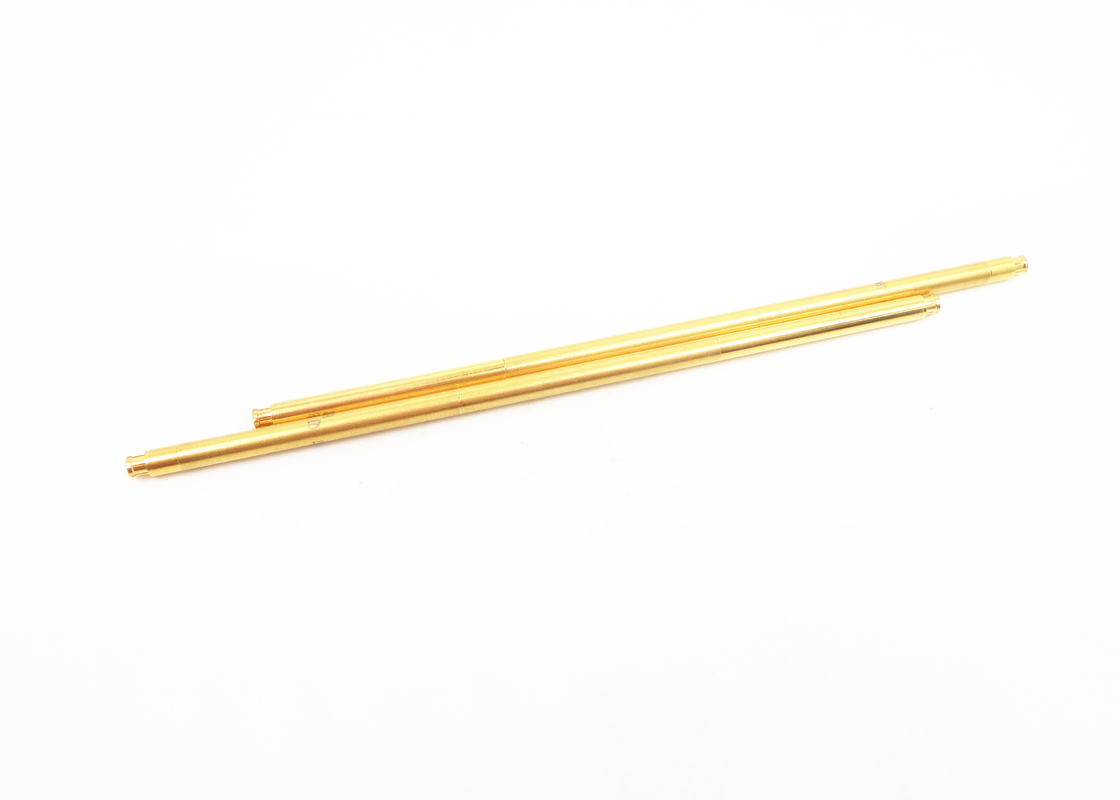

| Product Name: | SSMP/SMPM/Mini SMP Connector | Gender: | Jack To Jack |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Other Names: | Mini SMP, SMPM | Body Style: | Straight |
| Model: | SSMP-KK367 | ||
| Highlight: | RF Female To Female Jack Adapter,Mini SMPM RF Connector,Long Bullet SMP RF Connector |
||
Introduction
SSMP is a compact push-on RF coaxial connector that offers several advantages over traditional SMP connectors. It has a smaller volume, lighter weight, and a wide operating bandwidth. This makes it ideal for board-to-board connections in modular, densely packed applications. The plug features two interface options, one with full detent and the other with an unthreaded hole.
The RF interconnect family caters to the requirements of small package designs. It is suitable for high-speed signal transmission applications and can be used in blindmate board-to-board systems with a floating bullet. This floating bullet serves as a link between the mated pairs and compensates for both radial and axial misalignment.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
Material & Mechanical Characteristics:
Center Conductor:
Male: Sn-P Bronze/Kovar, Gold plated
Female: Beryllium bronze, Gold plated
Elastic Contact:Beryllium bronze Gold plated
Body and other Metal Parts: Brass/Kovar Gold plated
Details:
Features:
SSMP connector, also known as GPPO/SMPM connector, is a miniature version of SMP connector. It is a compact push-on RF coaxial connector and is widely used for dense interconnections in RF modules. In terms of features, SSMP connector has the advantages of easy connection, lightweight, small size, and wide operating bandwidth. These characteristics make it ideal for high-density device connections.
Application:
Whether it is used for wireless communication, instrumentation, radar, laboratory testing, or aviation and aerospace equipment, SSMP adapters can perform excellently in RF signal transmission.
Factory& Production Line:
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
