Product Details:
Payment & Shipping Terms:
|
| Item: | Millimeter Wave Connectors | Gender: | Male |
|---|---|---|---|
| Material: | Stainless Steel | Keywords: | 1.85mm MMW Connectors |
| Plating: | Passivated | Application: | RF |
| Body Style: | Straight | ||
| Highlight: | Premium Stainless Steel RF Connector,1.85mm Male RF Connector,MF125A Cable RF Connector |
||

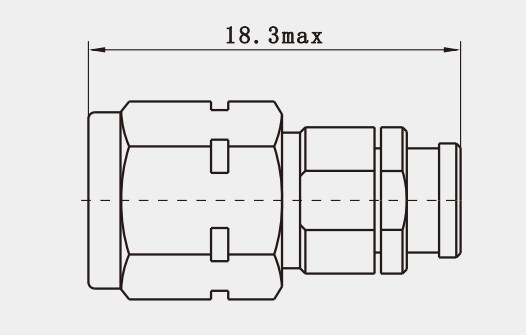

Premium Stainless Steel 1.85mm Male RF Connector for MF125A Cable
1.85 series connector is a high-performance millimetre wave connector, the use of frequency up to 67GHz, the use of air interface threaded connection, can be interchanged with the 2.4 series connector docking has a small size, light weight. With the advantages of small size, light weight, high frequency and reliable connection, it is usually used in high frequency microwave measurement and millimetre wave equipment.
Translated with DeepL.com (free version)
Specification:
|
Electronic and Material Characterials |
||
| Impedance | 50Ohm | |
| Frequency Range | DC~67GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| VSWR | ≤1.05+0.005f | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male |
Beryllium bronze gold plated |
| Female | Beryllium bronze gold plated | |
| Shell and other metal parts |
Brass /stainless Stain gold plated /passivated |
|
| Insulator | PLF | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

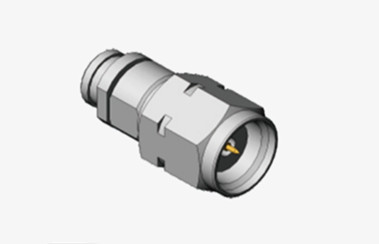

More Pictures of Premium Stainless Steel 1.85mm Male RF Connector for MF125A Cable:
Features:
The 1.85mm connector, with its small size, light weight, and high-frequency capabilities, is extensively used in millimeter-wave instruments and systems . These attributes make it a critical component for applications requiring high precision and reliability, such as wireless communications, aerospace, test and measurement, and research institutions .
The 1.85mm wave radio frequency coaxial connector has become an indispensable part of modern high-frequency applications, thanks to its outstanding technical specifications and wide range of uses.
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
