Product Details:
Payment & Shipping Terms:
|
| Product Name: | 2.4mm RF Coaxial Conector | Plating: | Passivated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | ISO-9001-2015 |
| Type: | Male | Lifetime: | 500Cycles |
| Application: | Computer/LANs | Material: | Stainless Steel |
| Highlight: | 2.4mm Male RF Cable Connector,Millimetre Wave Cable RF Cable Connector,Semi-flexible RF Cable Connector |
||

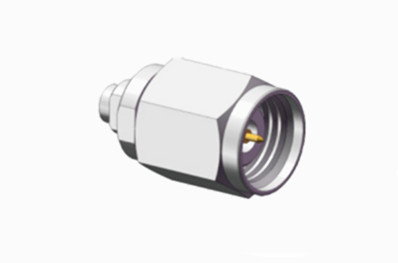

2.4mm Male RF Cable Connector for 1#Semi-rigid/Semi-flexible Millimetre Wave Cable
The 2.4 series connector is a millimeter wave connector offering high performance for operations up to 50GHz. It utilizes an air interface and threaded connection.
The 2.4 series connectors are designed for frequencies up to 50GHz and feature an air interface and threaded connections. They are known for their small size, lightweight construction, high-frequency capability, and dependable connections. These connectors are widely used in high-frequency microwave measurements and millimeter wave equipment.

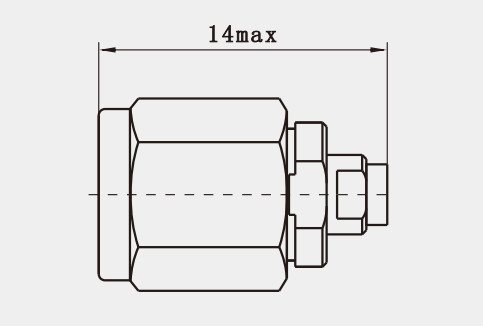

Outline Drawing of 2.4mm Male RF Cable Connector for 1#Semi-rigid/Semi-flexible Millimetre Wave Cable :(mm)
Note:The specific data of the model are based on the data in the product specification sheet.
Specification of 2.4mm Male RF Cable Connector for 1#Semi-rigid/Semi-flexible Millimetre Wave Cable (mm):
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC～50GHz
|
|||
|
Rated Voltage
|
170VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance |
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.05+0.005f
|
|||
Detailed Drawing of 2.4mm Male RF Cable Connector for 1#Semi-rigid/Semi-flexible Millimetre Wave Cable(mm):
Features:
1. High Frequency Performance:
Frequency Range: The 2.4mm connector is designed for use up to 50GHz, suitable for applications requiring broad bandwidth.
No Higher Order Modes: At 50GHz, the 2.4mm connector does not produce higher order modes, ensuring clear and accurate signal transmission.
High-Performance Interface: This connector exhibits high-performance interface characteristics within 50GHz, making it excellent for high-frequency applications.
2. Compact Design:
Size and Weight: With an outer conductor diameter of 2.4mm, the 2.4mm connector is smaller and lighter than other millimeter wave connectors, making it ideal for space-constrained and portable applications.
Mechanical Compatibility: The 2.4mm connector is mechanically compatible with other small connectors like the 1.85mm connector but cannot be directly connected to larger sizes like 2.92mm, 3.5mm, or SMA connectors, ensuring system integration and safety.
Application:
1. Precision Measurement
High-Frequency Network Analyzer: The 2.4mm connector is extensively used in high-frequency network analyzers with operating frequencies up to 50GHz. These applications require high precision and reliability from the connectors to ensure accuracy and repeatability in measurements.
Microwave Measurement Equipment: In microwave equipment requiring precise measurements, the 2.4mm connector is preferred for its excellent electrical performance and mechanical stability. Its compact design allows installation in space-limited measurement devices while providing high-performance connectivity.
2. High-Frequency Network Analyzers
Instrument-Grade Applications: The 2.4mm connector is the first product available in production, instrument, and metrology grades, making it widely used in various high-frequency testing instruments. These connectors can withstand high usage frequencies while maintaining long-term stable performance.
Standardized Test Interfaces: Due to its standardized design and broad industry acceptance, the 2.4mm connector has become the preferred interface for many standardized test equipment, ensuring compatibility and interoperability between devices.
Related Products:
| 2.4-J506G-2 | 2.4mm male stainless steel rf connector for CXN3506/MF108A cable |
| 2.4-J130G | 2.4mm male rf connector for MF30A cable |
| 2.4-JB2G-1 | 2.4mm male stainless steel rf connector for 2#Semi-Rigid/Flex cable |
