| Product Name: | 2.4mm RF Coaxial Conector | Impedance: | 50Ω |
|---|---|---|---|
| Lifetime: | 500Cycles | Application: | Computer/LANs |
| Material: | Stainless Steel | Plating: | Passivated |
| Gender: | Male | Certificate: | ISO-9001-2015 |
| Highlight: | 2.4mm Stainless Steel RF Coaxial Connector,2.4mm Male RF Coaxial Connector,SF102E RF Coaxial Connector |
||

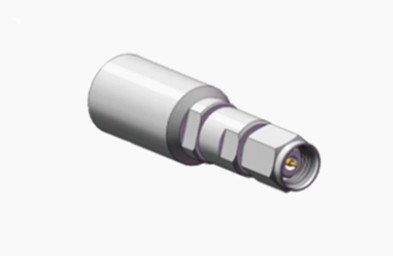

2.4mm Male Stainless Steel RF Coaxial Connector with SF102E/SF102 Cable
The 2.4mm series connector is a high-performance millimeter wave connector designed for frequencies up to 50GHz, utilizing an air interface with a threaded connection. It is characterized by its small size, lightweight, high-frequency capabilities, and reliable connections. These connectors are frequently used in high-frequency microwave measurements and millimeter wave equipment.
Specification
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC～50GHz
|
|||
|
Rated Voltage
|
170VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance |
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.05+0.005f
|
|||

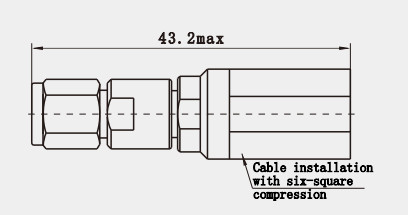

Detailed Drawing:
Features:
In terms of basic performance, the outer conductor diameter of the 2.4mm connector is 2.4mm, with a characteristic impedance of 50Ω, utilizing an air dielectric . This allows it to operate up to frequencies of 50GHz, making it suitable for extreme environments for precision measurement and high-speed data transmission. Thanks to its excellent electrical performance and miniaturized design, it is widely used in radar engineering, electronic countermeasures, satellite communications, and other fields .
Advantages:
| Normal products | Elite products | |
| Frequency Range | DC~40GHz | DC~65GHz |
| VSWR | ≤1.35 | ≤1.3 |
| Durability | 300 Cycles | >500 Cycles |
Application:
Firstly, the 2.4mm connector is designed for extremely high operating frequencies, up to DC-50GHz . This high-frequency range makes it an ideal choice for millimeter-wave communication systems. Within this frequency range, other types of connectors often cannot provide such excellent performance, making the 2.4mm connector particularly important in ultra-high frequency applications.
Secondly, its miniaturized size is also a significant advantage. In the design of modern communication equipment and precision instruments, space utilization is an important consideration. The outer conductor diameter of the 2.4mm connector is only 2.4mm, making it suitable for space-constrained applications . For example, in satellite communications and radar systems, where the size and weight of equipment are strictly limited, the miniaturized 2.4mm connector proves very appropriate.
