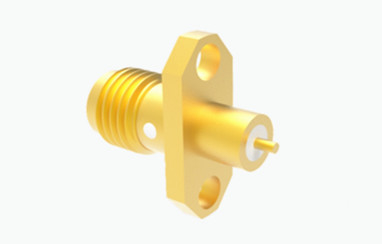

| Product Name: | SMA RF Coaxial Conector | Plating: | Gold Plated |
|---|---|---|---|
| Gender: | Female | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Life Span: | 500 Cycles |
| Application: | Communication | Material: | Brass |
| Highlight: | 2-hole Flange RF Coaxial Connector,SMA Female RF Coaxial Connector,Brass Aerospace RF Coaxial Connector |
||
The SMA series of RF coaxial connectors are celebrated for their compact design and high-frequency performance, operating efficiently up to 18GHz. They provide a range of advantages, including a small form factor, extensive bandwidth, superior mechanical and electrical properties, and reliable connectivity. These features have established them as one of the most commonly used types of RF coaxial connectors. They are widely utilized in sectors such as aerospace, maritime, and numerous other fields.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | 0.3ZHz-18GHz | ||
| Dielectrics Voltage-resistance | 1000VRMS | ||
| Insulation Resistance | ≥5000MΩ(DC:500V) | ||
| Center Resistance | Center Conductor | ≤3.0mΩ | |
| Outer Conductor | ≤2.0mΩ | ||
| Material & Mechanical Characteristics | |||
| Fixation of the center contact | ≥26.7 | ||
| Durability | 500times | ||
| Cable Retention | Minimum cable retention force | ||
| Temperature | -55°C~+125°C | ||

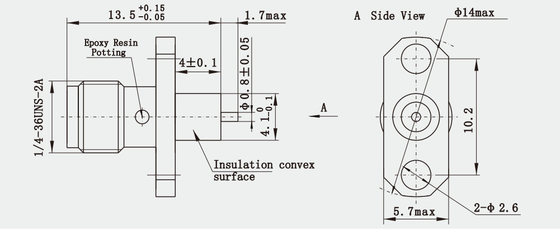

Outline Drawing:(mm)
Features:
1. Precise Mechanical Structure: - The precise structural design ensures that the threaded connection of the connector is tight and reliable, preventing loosening under vibration or shock conditions. Meanwhile, the connector pins and jacks are machined with high precision to ensure good electrical contact. - With certain mechanical strength, they can withstand the mechanical stress during installation and use and are not easily damaged.
2. Strict Quality Control and Inspection: - The production process follows a strict quality management system, and each production step is strictly inspected and controlled to ensure that the quality and performance of the products meet the aerospace standards. For example, the electrical performance, mechanical performance and environmental adaptability of the connectors will be thoroughly tested and verified.
3. High Reliability: - Stable operation under extreme temperature, humidity, vibration, shock and other harsh environments ensures that the connector can still maintain good connection performance under the complex conditions of spacecraft in space. For example, some aerospace-grade SMA connectors can withstand temperatures ranging from -55°C to 125°C, and can withstand high acceleration and strong vibration shocks. - Good corrosion resistance to cope with corrosive substances or environments that may exist in space, extending the service life of the connectors.
Application:
1. Measurement and control equipment connection: SMA connectors can be used to connect radar, telemetry equipment, and other devices in ground measurement and control stations. These devices require RF connections with antennas, signal processing equipment, etc. to achieve tracking, measurement, and control of spacecraft.
2. Sensor signal connection: some sensors output signals for RF signals, SMA connectors can be connected to the sensor and signal processing circuits to transmit the information detected by the sensor.
3. Detector internal connection: in deep space detectors, SMA connectors can be used to connect the detector internal communication equipment, scientific instruments, etc., to adapt to a variety of harsh conditions in the space environment, such as high and low temperature changes, vacuum environment, radiation and so on.
Product Cataloge:
1.85 series
2.4 series
2.92 series
SMA series
SMP series
SMPM series
Glass Insulator Products
Coaxial Waveguide Adapter
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
