Premium MSSM Male Stainless Steel RF Coaxial Connectors for High Performance and Durability
Introducing the MSSM Series: Exceptional High-Performance Millimeter-Wave Connectors with a Frequency Reaching Up to 40GHz. Featuring Air Interface Threaded Connections, These Connectors Are Compatible with SSMA Series Connectors for Versatility. The MSSM Series Boasts a Compact Design, Lightweight Construction, and Reliable Connection, Making It Perfect for High-Frequency Microwave Measurements and Millimeter-Wave Devices.
Specifiacation:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Dielectrics Voltage-resistance | 500VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.07+0.007f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics | |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF/PEI |
| Temperature Range | -55 ~ +125℃ |
Feature:
1. High Frequency Performance: The MSSM series connectors are designed to support a frequency range of up to 40 GHz. This high frequency characteristic makes them ideal for millimeter wave communications, radar systems, and high-precision RF applications.
2. Miniaturized Design: MSSM connectors are miniaturized RF connectors for applications where space saving is required, such as mobile communication devices and small antennas. Their compact size helps to realize high-performance connections in limited space.
3. Thread Locking Mechanism: These connectors feature a thread locking design that provides reliable mechanical strength and electrical performance. The thread locking mechanism ensures a stable and reliable connection, even under vibration or harsh environments.
4. Interchangeability and Compatibility: MSSM connectors are compatible with SSMA series connectors, which means they can be used interchangeably, providing users with more flexibility and convenience. This compatibility allows users to choose the most appropriate connector type for their specific needs.

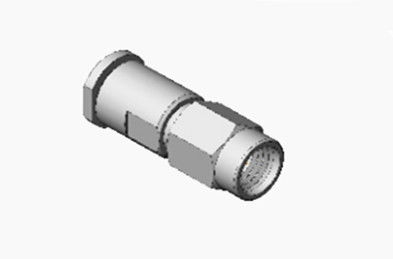

Outline Drawing(mm) and Picture of Premium MSSM Male Stainless Steel RF Coaxial Connectors for High Performance and Durability
Application:
1. Millimeter-wave communications: with the development of 5G and future 6G technologies, there is a growing need for communications in the millimeter-wave band. the ability of MSSM connectors to support a frequency range of up to 40GHz makes them ideal for use in millimeter-wave communication systems.
2. Radar Systems: In radar technology, high-frequency signals are critical for improving resolution and range, and the high-frequency performance of MSSM connectors makes them an indispensable part of radar systems, especially in military and civilian radar applications.
3. Satellite Communications: Satellite communications require high performance RF connectors to ensure stable signal transmission, the reliability and stability of MSSM connectors make them ideal for satellite communications equipment.
