SMA Female Brass 4-hole Flange RF Coaxial Connector For Communication

Large Image : SMA Female Brass 4-hole Flange RF Coaxial Connector For Communication Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	SMA-KFD5

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1,000,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SMA RF Coaxial Conector	Plating:	Gold Plated
Gender:	Female	Impedance:	50Ω
Frequency:	DC~18GHz	Life Span:	500 Cycles
Application:	Communication	Material:	Brass
Highlight:	SMA Female Brass Connector , Communication SMA Female Brass Connector , 4-hole Flange SMA Female Connector

SMA Female Brass 4-hole Flange RF Coaxial Connector for Communication

The SMA series of RF coaxial connectors are highly acclaimed for their compact design and high-frequency performance, operating effectively up to 18GHz. They provide numerous advantages, including a small form factor, wide bandwidth, excellent mechanical and electrical characteristics, and reliable connections. These features have made them one of the most popular types of RF coaxial connectors. They are widely used in industries such as aerospace, marine, and many others.

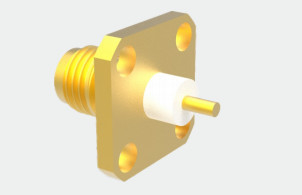

SMA Female Brass 4-hole Flange RF Coaxial Connector For Communication 0

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	0.3ZHz-18GHz

Dielectrics Voltage-resistance	1000VRMS
Insulation Resistance	≥5000MΩ(DC:500V)
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
Material & Mechanical Characteristics
Fixation of the center contact	≥26.7
Durability	500times

Cable Retention	Minimum cable retention force
Temperature	-55°C~+125°C

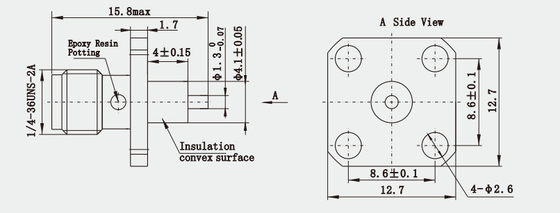

Outline Drawing:(mm)

SMA Female Brass 4-hole Flange RF Coaxial Connector For Communication 1

Features:

High performance: These connectors typically have excellent electrical properties such as low insertion loss, high return loss and good isolation to support high frequency signal transmission.
Miniaturized design: In order to meet the space and weight constraints of aerospace equipment, aerospace-grade RF coaxial connectors are often miniaturized, such as the SMA series and other small threaded connection coaxial connectors.
Mechanical Strength: Due to the unique nature of the aerospace environment, these connectors need to have sufficient mechanical strength to withstand the vibration and shock of the launch process.

Application:

Communication equipment: RF coaxial connectors play a vital role in the communication industry, especially in wireless communication, satellite communication and network infrastructure. Due to their excellent electrical properties, such as low insertion loss and high return loss, RF coaxial connectors ensure stable signal transmission.
Computer Networks: In data centers and high-performance computing environments, RF coaxial connectors are used for high-speed data transmission and connecting key hardware components to ensure the efficiency and speed of data processing.
Electronic devices: RF coaxial connectors are widely used in a variety of consumer electronics products, including smart phones, tablets and other portable devices to support high-frequency signal transmission.

Product Cataloge:

1.85 series

2.4 series

2.92 series

SMA series

SMP series

SMPM series

Glass Insulator Products

Coaxial Waveguide Adapter

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
