Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMA RF Coaxial Conector | Plating: | Gold Plated |
|---|---|---|---|
| Gender: | Female | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Life Span: | 500 Cycles |
| Application: | Communication | Material: | Brass |
| Highlight: | SMA Female Aerospace RF Coaxial Connector,Flat Microstrip RF Coaxial Connector |
||

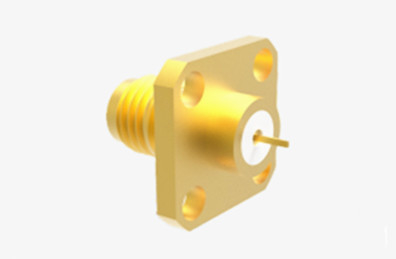

The SMA series of RF coaxial connectors are celebrated for their compact design and high-frequency performance, operating effectively up to 18GHz. They provide numerous advantages, including a small form factor, wide bandwidth, excellent mechanical and electrical properties, and reliable connections. These features have made them one of the most popular types of RF coaxial connectors. They are widely used in industries such as aerospace, marine, and various other fields.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | 0.3ZHz-18GHz | ||
| Dielectrics Voltage-resistance | 1000VRMS | ||
| Insulation Resistance | ≥5000MΩ(DC:500V) | ||
| Center Resistance | Center Conductor | ≤3.0mΩ | |
| Outer Conductor | ≤2.0mΩ | ||
| Material & Mechanical Characteristics | |||
| Fixation of the center contact | ≥26.7 | ||
| Durability | 500times | ||
| Cable Retention | Minimum cable retention force | ||
| Temperature | -55°C~+125°C | ||

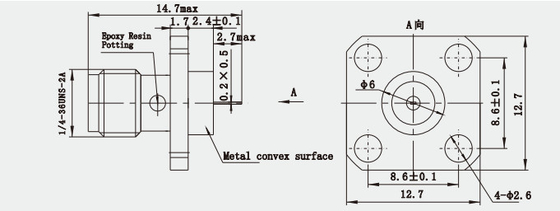

Outline Drawing:(mm)
Features:
Application:
1. Spacecraft Communication System:
Signal Transmission Connection: In the communication systems of satellites and other spacecraft, SMA connectors are utilized to link various RF cables and equipment, ensuring stable signal transmission. For instance, in the communication link between satellites and ground stations, SMA connectors connect essential equipment such as RF transceiver modules, filters, and amplifiers to ensure proper communication.
2. Antenna System Connection: The antenna system of the spacecraft needs to be connected to the internal RF signal processing equipment. SMA connectors can provide reliable connections to ensure that the signals received by the antenna can be accurately transmitted to subsequent processing circuits.
