Product Details:
Payment & Shipping Terms:
|
| Product Name: | BMA RF Conector | Plating: | Nickel / Gold Plated |
|---|---|---|---|
| Durability: | 500 Cycles | Contact Material: | Brass, BeCu |
| Material: | Brass | Design Standard:: | IEC 1169-33 |
| Type: | Straight | Gender: | Female |
| Highlight: | Female Straight RF Coaxial Connector,High Perfoemance RF Coaxial Connector,Microstrip RF Coaxial Connector |
||

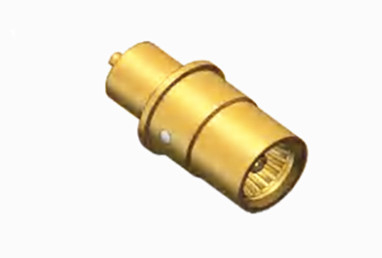

BMA Female Straight High Perfoemance RF Coaxial Connector with Microstrip
The BMA series constitutes a category of blind-mate connectors, meticulously designed and manufactured in compliance with IEC1169-33 standards. Incorporating an innovative spring plate architecture, these connectors ensure steadfast contact and exhibit exceptional electrical attributes. A notable advantage lies in their capability for both axial and radial floatation, coupled with minimal required mating space and a lightweight design, rendering them ideal for application in the blind mating of chassis cabinets. Widely utilized in module connectivity within chassis cabinets, BMA connectors offer interchangeability with international counterparts of the same type, facilitating rapid engagement and disengagement. They are adept at establishing connections for coaxial cables in radio equipment and instruments.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50 Ohm | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MOhm | |
| Contact Resistance | Outer conductor | ≤uygneduyoaix2.0mOhm |
| Center conductor | ≤0.5mOhm | |
| VSMR | ≤1.3 | |

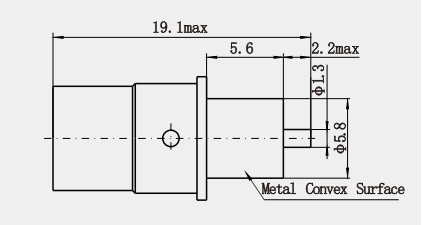

Product Detail
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass,stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -55 to +155Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
1. Easy to connect: The interface interface of BMA connector adopts air interface, which can be quickly connected and disconnected without using tools, improving work efficiency.
2. Wide range of applications: BMA connectors are widely used in various interconnections in modularized complete products, such as high-speed high-density panels and backplanes, high-speed digital signaling systems, phased-array radar systems, RF backplanes and backplane assemblies, and so on.
3. Highly customizable: According to different application requirements, BMA connectors can be customized with different installation methods and cable lengths to meet specific usage requirements.
Application:
1. Electronic countermeasures equipment:
In electronic countermeasure system, it is used to connect various reconnaissance, jamming and anti-jamming equipment to ensure that the system can work normally in the complex electromagnetic environment and improve the effect and capability of electronic countermeasure.
2. Test and measurement instruments:
In RF test instruments, BMA connectors can be used to connect the equipment under test and test instruments, such as vector network analyzers, spectrum analyzers, etc., to ensure the accurate transmission of test signals and the accuracy of measurement results. Its excellent electrical and mechanical properties can meet the needs of high-precision testing.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
