Product Details:
Payment & Shipping Terms:
|
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Gender: | Female | Gasket: | Silicone Rubber |
| Durability: | 500 Cycles | Body Style: | Straight |

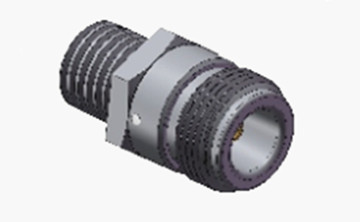

N Female Bulkhead RF Coaxial Connector High Performance for Communication
N type connectors are coaxial connectors with threaded coupling, known for their excellent anti-vibration capabilities and electrical properties, typically supporting a frequency range up to 11 GHz. Our advanced connectors extend this range to 18 GHz. They are suitable for various types of RF cables and are commonly used in fields such as aviation, aerospace, radar, microwave and digital communications, test and measurement instruments, among others. We offer customization services for different N type connectors and adapters to meet specific customer requirements, including straight or right-angle configurations, flange mount or bulkhead mount options.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |

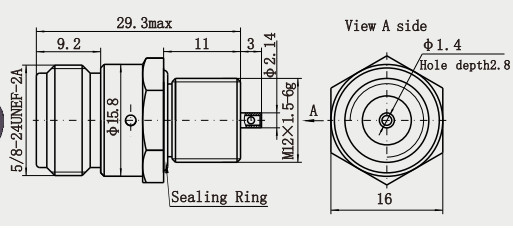

Detailed Drawing
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |
Features:
1. Low loss: the use of high-quality materials and precision manufacturing process, the loss generated in the signal transmission process is extremely low, which helps to improve the efficiency and quality of signal transmission.
2. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
3. Strong durability: After special treatment and testing, it can work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and has a long service life.
4. Good compatibility: Compatible with many types of cables, including semi-rigid cables and flexible cables, etc., which makes it more widely applicable in practical applications.
Applications:
1. Low loss: the use of high-quality materials and precision manufacturing process, the loss generated in the signal transmission process is extremely low, which helps to improve the efficiency and quality of signal transmission.
2. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
3. High durability: After special treatment and testing, it can work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and has a long service life.
4. Compatibility: Compatible with many types of cables, including semi-rigid cables and flexible cables, etc., which makes it more widely applicable in practical applications.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| MCX/MMCX RF Connector |
| Waveguide to Coaxial Adapter |
| TNC RF Connector |
| SMP/SSMP RF Connector |
| SMA/SSMA RF Connector |
| Microwave Rotary Joints |
| N Type RF Connector |
| BNC RF Connector |
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
